Use ADB to Connect to Your Android Device From a Docker Container

You may have a use-case where you want to write software to manipulate an Android device using a system or set of tools that are not natively available from your current system. However, you might be able to expose this as a Docker image. For example, your device is (or will be) connected to a Windows machine and you really want to or need to use Linux tools.

No problem. ADB implicitly uses a client-server model: The ADB tool (on your system) connects to the ADB server (runs in the background on your system) which interacts with the ADB daemon (runs on your device). This means that we can forward requests from ADB on the command-line in the guest container in Docker to the ADB server on the host system.

The ADB client and server have to be at the same version, or the client will indiscriminately kill/restart your ADB server. So, as I am currently running Ubuntu 14.04 on my host system, I will do the same in Docker.

First, I will make sure the ADB server is running on my host system. Most of the subcommands that will automatically start the local server, but I will start it directly:

$ adb start-server
* daemon not running. starting it now on port 5037 *
* daemon started successfully *

Now, I will start a container in Docker with Ubuntu 14.04 and automatically install ADB before dropping to a prompt. Note that we are passing “–network=host” in order to share the host’s network identity:

$ docker run -i -t --network=host ubuntu:14.04 /bin/bash -c "sudo apt-get update && sudo apt-get install -y android-tools-adb && /bin/bash"

Eventually, you will end-up at the prompt. Just do something simple like enumerating the devices:

root@mlll2664:/# adb devices
List of devices attached
05157df572841820 device

The “mlll2664” hostname, represented in the prompt in the Docker container, is, actually, the same hostname as my host system.

So, there you go. Not too painful.


Go: Image-Processing Microservice

Imaginary is a fun little package that can be Dockerized and deployed next to the rest of your services to offload image-processing:

Fast HTTP microservice written in Go for high-level image processing backed by bimg and libvips. imaginary can be used as private or public HTTP service for massive image processing with first-class support for Docker & Heroku. It’s almost dependency-free and only uses net/http native package without additional abstractions for better performance.

Intro to Docker, and Private Image Registries

Docker is an application hosting framework. It enables you to wrap virtual-machine containers around your applications and both manufacture and control them via API.

Docker allows you to bundle your dependencies/servers and your application into a thin image that is layered on top of another one (such as Ubuntu, or something more formally prepared for your needs). These are different than virtual machines, in that even though they are heavily isolated from the other processes in the system using LXC and cgroups (Linux concepts talked about in previous articles), they share the same resources and have almost no overhead. When you start a VM, you end up at a prompt or UI that is ready for you to install and start applications. When you start an application container, you run a script that starts your applications and dependencies, and nothing else. You can run a handful of VMs on a system, but a thousand application containers. If you want to streamline distribution, you can then consider using CoreOS to host your images at the OS-level.

Another feature that Docker contributes to containers is version control. You can commit any change that you’ve made to your container as a new image. You can obviously also start as many containers as you’d like from the same image (images themselves are immutable).

Your own process for distributing images to other teams or other companies might require a place to publish or coordinate your images beyond your current system. This is done via a Registry. Though Docker provides the public Docker Hub Registry, you may want a private Registry of your own for your company or development team.

Because the components/accessories of Docker are, themselves, often distributed as Docker images, this example has the second effect of showing you how easy it is to start a Docker-based application (in case you were unfamiliar, before). You don’t need to know anything about the guest application other than what ports its services are hosted on. In fact, you can start Docker images (which are then referred to as containers) that may be required for other Docker images, have Docker map random local ports to them, and then automatically forward ports from the containers that provide a service to the containers that depend on them (via a feature called linking).

Start your Registry using something similar to the example from the Registry project homepage:

$ docker run
         -e SETTINGS_FLAVOR=s3
         -e AWS_BUCKET=mybucket
         -e STORAGE_PATH=/registry
         -e AWS_KEY=myawskey
         -e AWS_SECRET=myawssecret
         -e SEARCH_BACKEND=sqlalchemy
         -p 5000:5000

This essentially sets six environment variables for the application that tell it to store into S3 and forward port 5000 from the host (local) system to port 5000 in the guest (Registry). “registry” is the name of the image to run (if it’s owned by a particular user, it’ll look like “/”). If it’s not already available locally, it’ll be located and pulled. If not further qualified with a registry prefix, it’ll assume that it must be located at the Docker Hub.

An example session where we pull the Ubuntu image down from the Hub, and push it into our Registry. Notice that we qualify the “push to” and “pull from” requests on our registry by prefixing the hostname/port of our Registry:

$ sudo docker pull ubuntu:14.04
$ sudo docker tag 826544226fdc
$ sudo docker push
$ sudo docker pull

The tag command reserves a new spot in our registry for the given image from somewhere else. You’d get that ID string from the local listing.

By default, the Registry communicates only directly to the Docker socket or can be managed via REST. If you want to have an easier time of browsing your images, install the docker-registry-web project:

$ docker run -p 8080:8080 -e REG1=http://<system hostname>:5000/v1/ atcol/docker-registry-ui

Keep in mind that it’s going to need to be able to talk to your Registry instance, so make sure the hostname that you’re giving it for the registry is resolvable from within the docker-registry-web container.

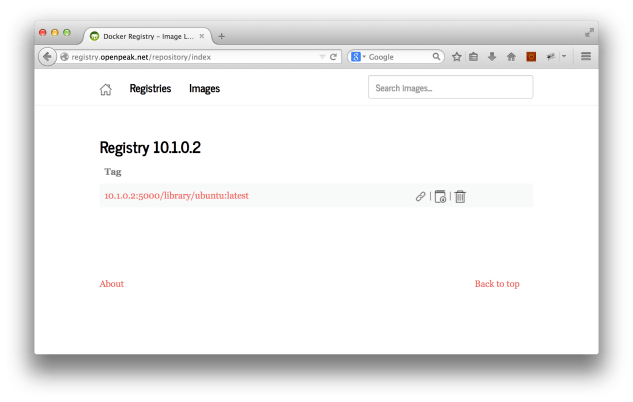

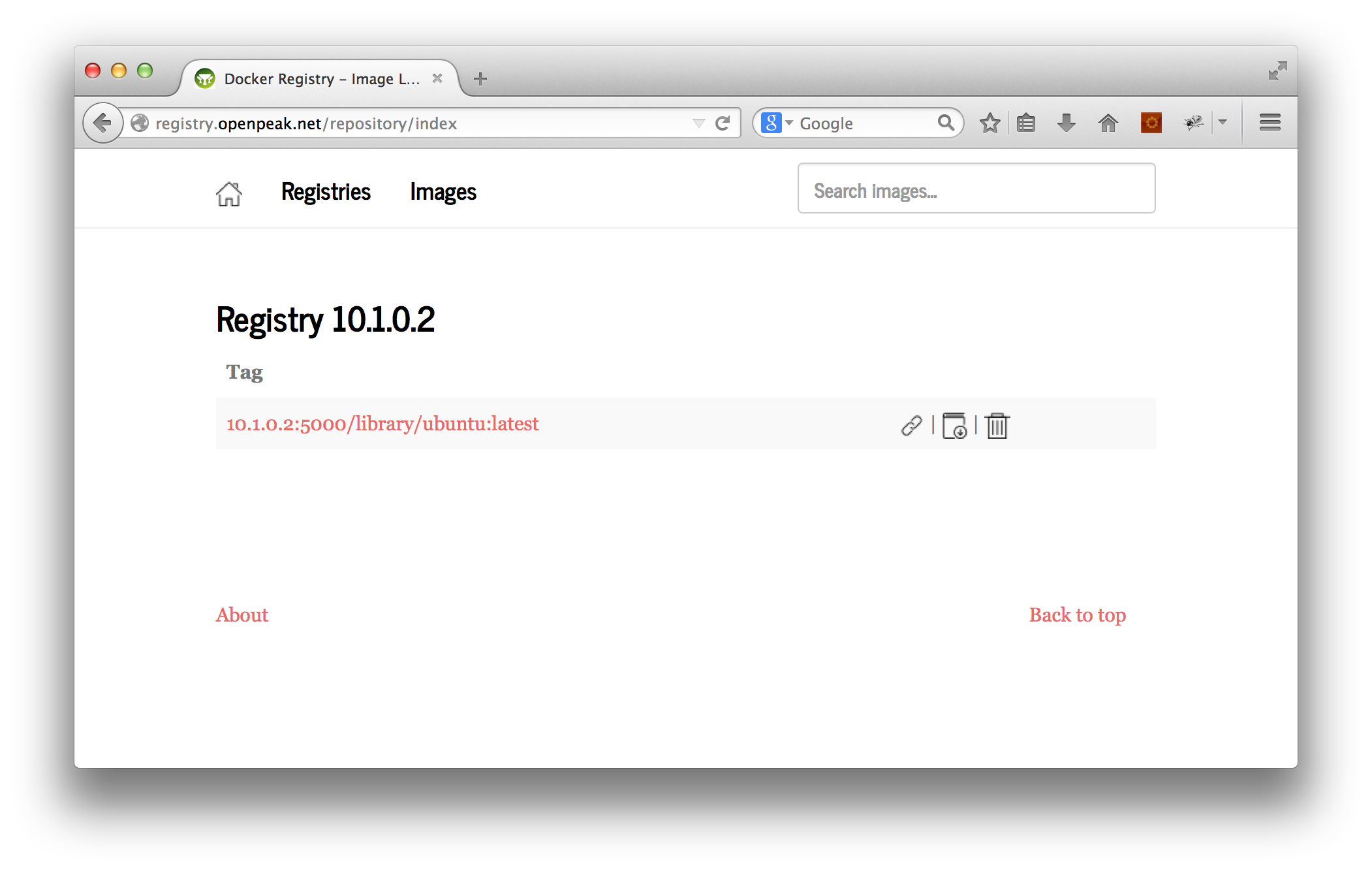

A screenshot:

Screen Shot 2014-10-12 at 2.36.19 PM

docker-registry-web is actually a Java application, but, again, it would be a poorly designed image if it was important for you to know that.

Lastly, when you’re done playing-around with your Registry instance, make sure to hide it behind an Nginx-proxy, and add authentication (mutual, HTTP, etc..).

Using Docker to Package and Distribute Applications as Containers

i’ve already posted a couple of articles referencing Linux’s LXC containers (see here), for lightweight process isolation and resource limiting.

Docker takes LXC and pushes the functionality to produce portable containers that can be:

  • versioned alongside your sourcecode
  • automatically built alongside binaries (using Dockerfiles)
  • published to a repository (both public and private can be used)

In this way, Docker producer application containers that will work consistently from within a variety of different environments.

The purpose of this article is to provide a very quick introduction to Docker, and a tutorial that hastily explains how to create a Python web project within an Ubuntu container, and connect to it.

Docker Daemon

Just like with LXC, a daemon runs in the background to manage the running containers. Though there exists a Docker Ubuntu repository, we use the manual process so that we can provide a more universal tutorial.

$ wget -O docker
--2014-02-12 01:08:01--
Resolving (,, 2400:cb00:2048:1::a29f:fb87, ...
Connecting to (||:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 15119491 (14M) [binary/octet-stream]
Saving to: ‘docker’

100%[==================================================================================================================>] 15,119,491  3.17MB/s   in 5.0s

2014-02-12 01:08:07 (2.91 MB/s) - ‘docker’ saved [15119491/15119491]

$ chmod +x docker

$ sudo ./docker -d
[/var/lib/docker|9024eeb6] +job initserver()
[/var/lib/docker|9024eeb6.initserver()] Creating server
[/var/lib/docker|9024eeb6] +job init_networkdriver()
[/var/lib/docker|9024eeb6.init_networkdriver()] creating new bridge for docker0
[/var/lib/docker|9024eeb6.init_networkdriver()] getting iface addr
[/var/lib/docker|9024eeb6] -job init_networkdriver() = OK (0)
2014/02/12 01:08:27 WARNING: Your kernel does not support cgroup swap limit.
Loading containers: : done.
[/var/lib/docker|9024eeb6.initserver()] Creating pidfile
[/var/lib/docker|9024eeb6.initserver()] Setting up signal traps
[/var/lib/docker|9024eeb6] -job initserver() = OK (0)
[/var/lib/docker|9024eeb6] +job serveapi(unix:///var/run/docker.sock)
2014/02/12 01:08:27 Listening for HTTP on unix (/var/run/docker.sock)

Filling the Container

In another terminal (the first is being used by the daemon), start the Ubuntu container. We do this by passing an image-name. If this image can’t be found locally, the tool will search the public repositor[y,ies]. If the image has not yet been downloaded, it will be automatically downloaded (“pulled”).

Whereas most images will look like “/”, some images have special aliases that take the place of both. Ubuntu has one such alias (which dotCloud, the Docker people, use for development): “ubuntu”.

First, we’re going to create/start the container.

$ sudo ./docker run -i -t ubuntu /bin/bash
[sudo] password for dustin:
Pulling repository ubuntu
9cd978db300e: Download complete
eb601b8965b8: Download complete
9cc9ea5ea540: Download complete
5ac751e8d623: Download complete
9f676bd305a4: Download complete
511136ea3c5a: Download complete
f323cf34fd77: Download complete
1c7f181e78b9: Download complete
6170bb7b0ad1: Download complete
7a4f87241845: Download complete
321f7f4200f4: Download complete
WARNING: WARNING: Docker detected local DNS server on resolv.conf. Using default external servers: []

root@618cd8514fec:/# ls -l
total 72
drwxr-xr-x   2 root root 4096 Jan 29 18:10 bin
drwxr-xr-x   2 root root 4096 Apr 19  2012 boot
drwxr-xr-x  11 root root 4096 Feb 12 06:34 dev
drwxr-xr-x  56 root root 4096 Feb 12 06:34 etc
drwxr-xr-x   2 root root 4096 Apr 19  2012 home
drwxr-xr-x  12 root root 4096 Jan 29 18:10 lib
drwxr-xr-x   2 root root 4096 Jan 29 18:10 lib64
drwxr-xr-x   2 root root 4096 Jan 29 18:10 media
drwxr-xr-x   2 root root 4096 Apr 19  2012 mnt
drwxr-xr-x   2 root root 4096 Jan 29 18:10 opt
dr-xr-xr-x 249 root root    0 Feb 12 06:34 proc
drwx------   2 root root 4096 Jan 29 18:10 root
drwxr-xr-x   5 root root 4096 Jan 29 18:10 run
drwxr-xr-x   2 root root 4096 Jan 29 18:11 sbin
drwxr-xr-x   2 root root 4096 Mar  5  2012 selinux
drwxr-xr-x   2 root root 4096 Jan 29 18:10 srv
dr-xr-xr-x  13 root root    0 Feb 12 06:34 sys
drwxrwxrwt   2 root root 4096 Jan 29 18:10 tmp
drwxr-xr-x  10 root root 4096 Jan 29 18:10 usr
drwxr-xr-x  11 root root 4096 Jan 29 18:10 var

Now, add the dependencies for the sample Python application, and add the code.

root@618cd8514fec:/# mkdir app
root@618cd8514fec:/# cd app

root@618cd8514fec:/app# apt-get install python-pip
Reading package lists... Done
Building dependency tree... Done
The following extra packages will be installed:
  python-pkg-resources python-setuptools
Suggested packages:
  python-distribute python-distribute-doc
The following NEW packages will be installed:
  python-pip python-pkg-resources python-setuptools
0 upgraded, 3 newly installed, 0 to remove and 63 not upgraded.
Need to get 599 kB of archives.
After this operation, 1647 kB of additional disk space will be used.
Do you want to continue [Y/n]?
Get:1 precise/main python-pkg-resources all 0.6.24-1ubuntu1 [63.1 kB]
Get:2 precise/main python-setuptools all 0.6.24-1ubuntu1 [441 kB]
Get:3 precise/universe python-pip all 1.0-1build1 [95.1 kB]
Fetched 599 kB in 26s (22.8 kB/s)
Selecting previously unselected package python-pkg-resources.
(Reading database ... 9737 files and directories currently installed.)
Unpacking python-pkg-resources (from .../python-pkg-resources_0.6.24-1ubuntu1_all.deb) ...
Selecting previously unselected package python-setuptools.
Unpacking python-setuptools (from .../python-setuptools_0.6.24-1ubuntu1_all.deb) ...
Selecting previously unselected package python-pip.
Unpacking python-pip (from .../python-pip_1.0-1build1_all.deb) ...
Setting up python-pkg-resources (0.6.24-1ubuntu1) ...
Setting up python-setuptools (0.6.24-1ubuntu1) ...
Setting up python-pip (1.0-1build1) ...

root@618cd8514fec:/app# pip install
  Downloading (90Kb): 90Kb downloaded
  Running egg_info for package
Installing collected packages:
  Running install for
Successfully installed
Cleaning up...

root@618cd8514fec:/app# cat <
> #!/usr/bin/env python2.7
> import web
> urls = (
>     '/', 'index'
> )
> class index:
>     def GET(self):
>         return 'Hello, world!'
> if __name__ == '__main__':
>     app = web.application(urls, globals())

root@618cd8514fec:/app# chmod u+x

This is the code that we used (for easy copy-and-pasting):

#!/usr/bin/env python2.7

import web

urls = (
    '/', 'index'

class index:
    def GET(self):
        return 'Hello, world!'

if __name__ == '__main__':
    app = web.application(urls, globals())

Make sure that the application starts correctly:

root@618cd8514fec:/app# ./

Feel free to do a cURL request to test. Afterwards, exit by doing CTRL+C, and running “exit”. We might’ve exited, but the container will still be running.

$ sudo ./docker ps -a
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS               NAMES
618cd8514fec        ubuntu:12.04        /bin/bash           7 minutes ago       Exit 0                                  berserk_engelbart

Commit the changes to the container (in the version-control sense). This won’t affect anything outside of your local system, yet.

$ sudo ./docker commit 618cd8514fec dsoprea/test_python_app

Stop the container.

# sudo ./docker stop 618cd8514fec

$ sudo ./docker ps
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS               NAMES

Now, start it, again, with port-forwarding from port :1234 on the current system to :8080 on the container.

$ sudo ./docker run -d -p 1234:8080 dsoprea/test_python_app /app/
WARNING: WARNING: Docker detected local DNS server on resolv.conf. Using default external servers: []

Test it using cURL.

$ curl http://localhost:1234 && echo
Hello, world!

Publishing Your Docker Image

Now, we’ll push it up to the Docker Index, for public access (this is part is up to you). You’ll need to setup a free account, first. Here, I use my own account (“dsoprea”).

$ sudo ./docker push dsoprea/test_python_app
The push refers to a repository [dsoprea/test_python_app] (len: 1)
Sending image list

Please login prior to push:
Login against server at
Username: dsoprea
Login Succeeded
The push refers to a repository [dsoprea/test_python_app] (len: 1)
Sending image list
Pushing repository dsoprea/test_python_app (1 tags)
511136ea3c5a: Image already pushed, skipping
Image 6170bb7b0ad1 already pushed, skipping
Image 9cd978db300e already pushed, skipping
32278919fbe5: Image successfully pushed
3805625219a1: Image successfully pushed
Pushing tag for rev [3805625219a1] on {}

The image is now available at (for my account):

If you actually want to do a fresh download/execution of your software, delete the local image (using the image ID).

$ sudo ./docker images
REPOSITORY                TAG                 IMAGE ID            CREATED             VIRTUAL SIZE
dsoprea/test_python_app   latest              3805625219a1        13 minutes ago      208 MB

$ sudo ./docker rmi 3805625219a1

$ sudo ./docker run -d -p 1234:8080 dsoprea/test_python_app /app/
Unable to find image 'dsoprea/test_python_app' (tag: latest) locally
Pulling repository dsoprea/test_python_app
3805625219a1: Download complete
511136ea3c5a: Download complete
6170bb7b0ad1: Download complete
9cd978db300e: Download complete
32278919fbe5: Download complete
WARNING: WARNING: Docker detected local DNS server on resolv.conf. Using default external servers: []

$ curl http://localhost:1234 && echo
Hello, world!

Notice that at times we refer to the “image”, and at others we refer to the “container”. This might be clear to some and confusing to others. The image describes the template from which the container is constructed (instantiated).

Docker was built to coexist in a continuous-integration- and/or Github-type environment. There’s way more to the tool. It’d be well-worth your time to investigate it on your own, as you might find yourself integrating it into your development or deployment processes. Imagine automatically creating drop-in solutions alongside all of your projects, that you can publish with the ease of a version-control push.
